- Country
- Germany
- Manufacturer / Brand
- Klenk & Co.; Stuttgart
- Year
- 1929 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15373
-
- Brand: Schriever & Klenk OHG, Dr.

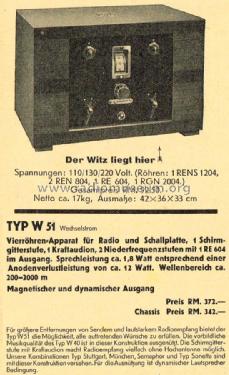

Klenk Preisliste Nr.43 ca. 1930
- Number of Tubes
- 5
- Main principle
- TRF without regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: W51 - Klenk & Co.; Stuttgart
- Dimensions (WHD)
- 420 x 360 x 330 mm / 16.5 x 14.2 x 13 inch
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Price in first year of sale
- 372.00 RM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Mentioned in
- Klenk Preisliste Nr.43 ca. 1929-30
- Other Models
-
Here you find 79 models, 20 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Klenk & Co.; Stuttgart
