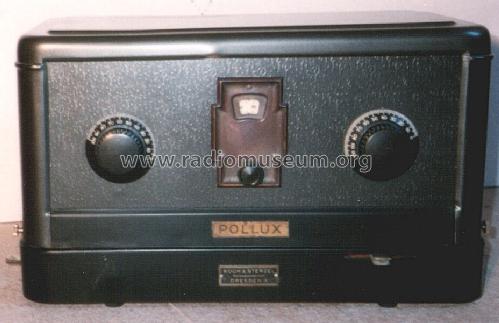

Pollux PO-WA
Koch & Sterzel AG; Dresden
- Country
- Germany
- Manufacturer / Brand
- Koch & Sterzel AG; Dresden
- Year
- 1930/1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15457
Sammlertreffen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 1 Special; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Pollux PO-WA - Koch & Sterzel AG; Dresden
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 445 x 255 x 250 mm / 17.5 x 10 x 9.8 inch
- Notes
-
Oft hat man nachträglich Apparate mit Schaltplänen versehen, die RGN1064 von 1932 zeigten statt die originale RGN1054 von 1929. Zumindest ist das bei den Funkschau-Bestückungstabellen oft der Fall. Wir vermuten diesen Fall für Pollux PO-WA.
Siehe auch: Selectus 4 von Fa. Gruwela.
- Net weight (2.2 lb = 1 kg)
- 8.8 kg / 19 lb 6.1 oz (19.383 lb)
- Price in first year of sale
- 320.00 RM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Mentioned in
- Funkgeschichte der GFGF (9075)
- Picture reference
- Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
