For model Carioca WP11, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF117 AF117 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / PP6: 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: Carioca WP11 - Kolster Brandes Ltd. KB, K.B.,
Dimensions (WHD) 217 x 36 x 52 mm / 8.5 x 1.4 x 2 inch
Notes

Portable radio fitted with car aerial & earphone sockets.

Same chassis as RGD B64 "Toledo" and also Regentone BT23 "Regenteener" with minor component changes.

Price in first year of sale 11.03 GBP
Source of data -- Schematic

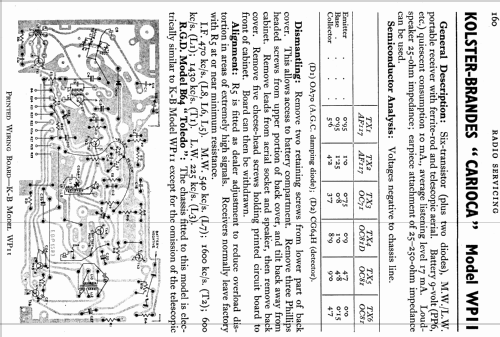

Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Mentioned in Radio! Radio! (Page 260)

Model page created by Keith Staines. See "Data change" for further contributors.
