• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117933

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s); Export model

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• 6 Loudspeakers / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1080 - Körting-Radio; Leipzig, später

• Shape
• Console with Push Buttons.

• Notes

• Die EM 84 wird neben der Anzeige auch als NF-Vorverstärker für den rechten Kanal benutzt.

• Circuit diagram reference
• Photofact Folder, Howard W. SAMS

• Literature/Schematics (1)

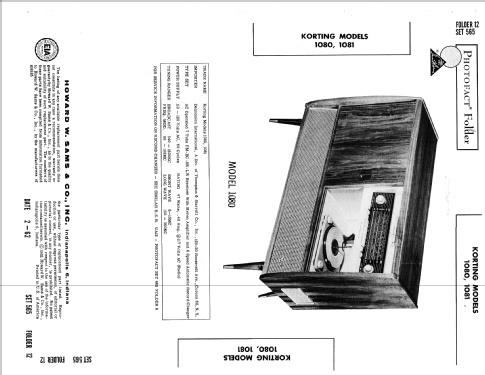

• Photofact Folder, Howard W. SAMS (Set 565 Folder 12)

• Author
• Model page created by Martin Kajdas. See "Data change" for further contributors.

• Other Models

• Here you find 814 models, 666 with images and 465 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Körting-Radio; Leipzig, später Grassau
