Amatus 39GW
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2470
-
- alternative name: Dietz & Ritter GmbH, Dr.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Amatus 39GW - Körting-Radio; Leipzig, später
- Dimensions (WHD)
- 537 x 410 x 300 mm / 21.1 x 16.1 x 11.8 inch
- Notes
-
Gerät identisch wie Amatus 39W nur mit eingebautem Wechselrichter.
- Net weight (2.2 lb = 1 kg)
- 18 kg / 39 lb 10.4 oz (39.648 lb)
- Price in first year of sale
- 343.00 RM
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Mentioned in

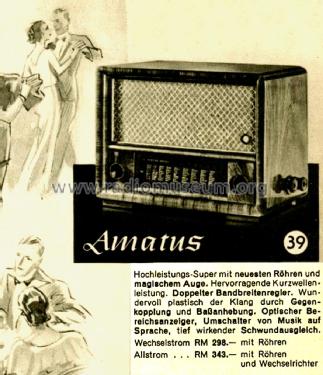

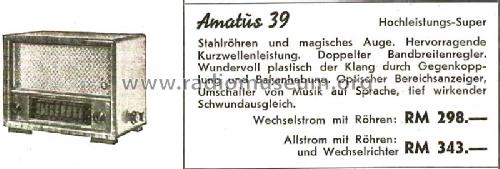

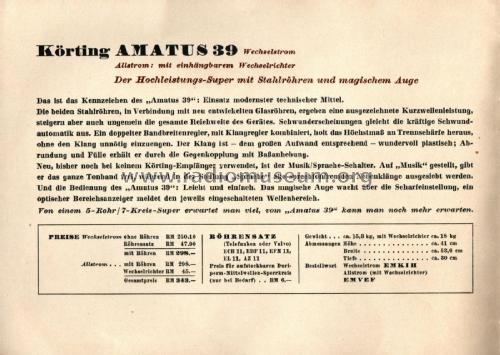

- - - Manufacturers Literature (Körting Prospekt 1938)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
- Other Models
-
Here you find 822 models, 675 with images and 473 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Körting-Radio; Leipzig, später Grassau
