Breitband-Kraftverstärker 25 W HKBW I (1) 10988c (HKBW25)

Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 1594670) Ampl/Mixer
Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423384) Ampl/Mixer Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423389) Ampl/Mixer
Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423394) Ampl/Mixer Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423390) Ampl/Mixer
Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423391) Ampl/Mixer Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423392) Ampl/Mixer
Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423393) Ampl/Mixer Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423395) Ampl/Mixer
Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423396) Ampl/Mixer Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423397) Ampl/Mixer
Use red slider bar for more.
Breitband-Kraftverstärker 25 W HKBW I 10988c ; Körting-Radio; (ID = 423384) Ampl/Mixer

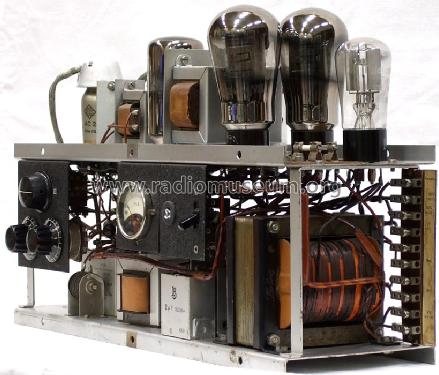

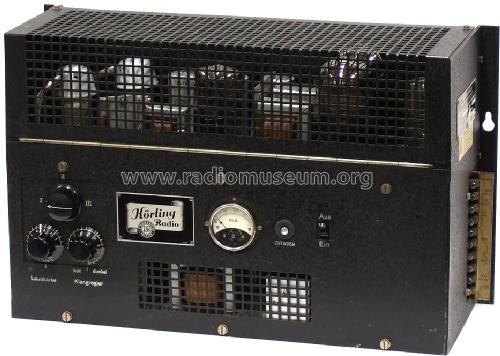

Körting-Radio;: Breitband-Kraftverstärker 25 W HKBW I 10988c [Ampl/Mixer] ID = 423384 933x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model Breitband-Kraftverstärker 25 W HKBW I (1) 10988c (HKBW25), Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1937/1938 Category: Audio Amplifier or -mixer
Valves / Tubes 6: AC2 AC2 AD1 RS241 RS241 RGQZ1,4/0,4d
Main principle Audio-Amplification; 4 AF stage(s)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 25 W (unknown quality)
from Radiomuseum.org Model: Breitband-Kraftverstärker 25 W HKBW I 10988c - Körting-Radio; Leipzig, später
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 510 x 295 x 190 mm / 20.1 x 11.6 x 7.5 inch
Notes

Breitband-Kraftverstärker für Wandmontage. Eingangs-Steuerspannung 40 mV; Ausgangs-Impedanzen: 6/250/500 Ohm.

In Literatur auch als HKBW25 bezeichnet.

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 530.00 RM
Source of data Handbuch WDRG 1937
Circuit diagram reference Röhren in FS-Bestückungstabellen

Model page created by Bernhard Nagel. See "Data change" for further contributors.
