Meridian 38 SE4244W

Meridian 38 SE4244W; Körting-Radio; (ID = 1026811) Radio

Meridian 38 SE4244W; Körting-Radio; (ID = 4723) Radio

Meridian 38 SE4244W; Körting-Radio; (ID = 1468895) Radio
Meridian 38 SE4244W; Körting-Radio; (ID = 1616095) Radio Meridian 38 SE4244W; Körting-Radio; (ID = 283066) Radio
Meridian 38 SE4244W; Körting-Radio; (ID = 283067) Radio Meridian 38 SE4244W; Körting-Radio; (ID = 1616096) Radio
Meridian 38 SE4244W; Körting-Radio; (ID = 1616097) Radio
Use red slider bar for more.
Meridian 38 SE4244W; Körting-Radio; (ID = 1616095) Radio

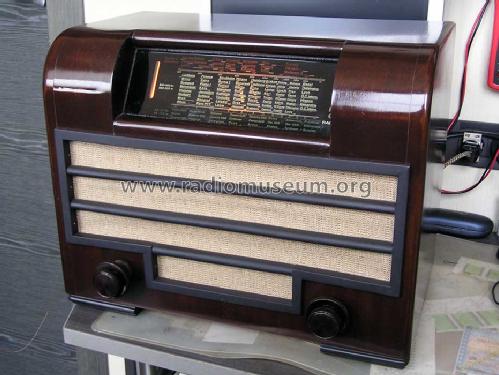

Körting-Radio;: Meridian 38 SE4244W [Radio] ID = 1616095 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Meridian 38 SE4244W, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1 Neon_Indicator
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Meridian 38 SE4244W - Körting-Radio; Leipzig, später
Material Wooden case
Shape Tablemodel, low profile (big size).
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
