Magnetton MK102

Körting-Radio; Leipzig, später Grassau

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Körting-Radio; Leipzig, später Grassau

Year
1957/1958

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
88447

- alternative name: Dietz & Ritter GmbH, Dr.

Schematics

Magnetton MK102; Körting-Radio; (ID = 163722) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 680827) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 680829) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 680830) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 680831) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 2852706) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041722) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041723) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041724) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041725) R-Player — Körting-Radio; Magnetton MK102 (3)

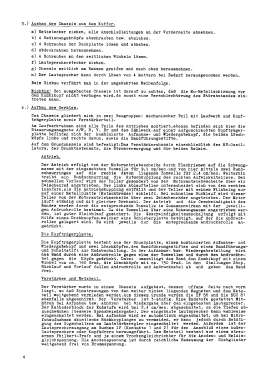

Magnetton MK102; Körting-Radio; (ID = 3041726) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041727) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041728) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041729) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041730) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041731) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041732) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041734) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041736) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041737) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041739) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041741) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041743) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041744) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 3041745) R-Player — Körting-Radio; Magnetton MK102 (3)

Magnetton MK102; Körting-Radio; (ID = 163900) R-Player — Körting-Radio; Magnetton MK102 (2)
Werbeprospektseite der Firma Körting

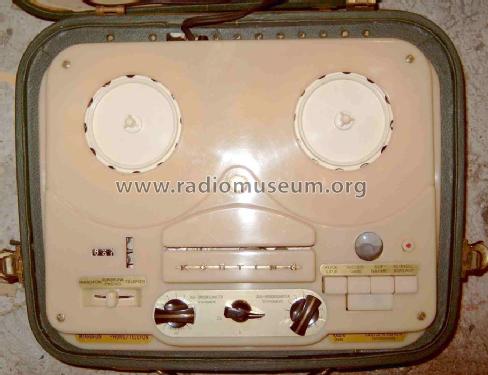

Magnetton MK102; Körting-Radio; (ID = 611945) R-Player — Körting-Radio; Magnetton MK102 (1)

Magnetton MK102; Körting-Radio; (ID = 686828) R-Player — Körting-Radio; Magnetton MK102 (2)

Magnetton MK102; Körting-Radio; (ID = 1760399) R-Player — Körting-Radio; Magnetton MK102 (2)
Körting Prospekt

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
EF86 ECC81 EL84 EL95 EM71

Main principle
Audio-Amplification

Wave bands
- without

Details
Tape Recorder; Remote Control (with wire or wireless)

Power type and voltage
Alternating Current supply (AC) / 110-240 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
4 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: Magnetton MK102 - Körting-Radio; Leipzig, später

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
420 x 195 x 330 mm / 16.5 x 7.7 x 13 inch

Notes
Bandgeschwindigkeiten: 2,4/9,5 cm/s; Doppelspur, Frequenzgang bei 9,5 cm/s: 40...12000 Hz.
Besonderheiten: Nutzung als NF Verstärker (Motor ist abgeschaltet)z.B. für Schallplattenwiedergabe oder Telefonverstärker, Fernsteuerungsmöglichkeit drahtgebunden. Gerät besitzt einen zusätzlichen Löschkopf, während der Dauer des Niederdrückens wird die gerade abgehörte Stelle gelöscht.

Net weight (2.2 lb = 1 kg)
13 kg / 28 lb 10.1 oz (28.634 lb)

Price in first year of sale
785.00 DM

Source of data
-- Original-techn. papers.

Literature/Schematics (1)
-- Schematic

Literature/Schematics (4)
Walter Arlt Handbuch.... 1957/58

Author
Model page created by Wolfgang Lill. See "Data change" for further contributors.
