Norrland 23231

Norrland 23231; Körting-Radio; (ID = 1391928) Radio

Norrland 23231; Körting-Radio; (ID = 1391929) Radio
Norrland 23231; Körting-Radio; (ID = 1118064) Radio Norrland 23231; Körting-Radio; (ID = 1118067) Radio

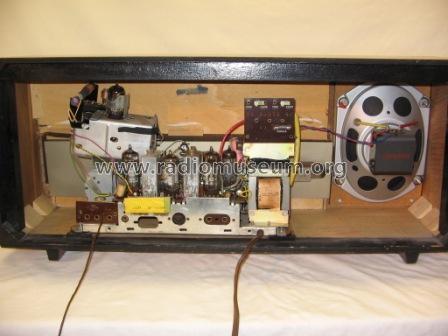

Norrland 23231; Körting-Radio; (ID = 1118069) Radio
Use red slider bar for more.
Norrland 23231; Körting-Radio; (ID = 1118064) Radio
Körting-Radio;: Norrland 23231 [Radio] ID = 1118064 448x336
Select picture or schematic to display from thumbnails on the right and click for download.
For model Norrland 23231, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL95
Semiconductors (the count is only for transistors) B250C75
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 17 cm = 6.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Norrland 23231 - Körting-Radio; Leipzig, später
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 230 x 560 x 185 mm / 9.1 x 22 x 7.3 inch
Notes

Siehe auch Aimee 23270

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Literature/Schematics (4) -- Schematic

Model page created by Donat Frey. See "Data change" for further contributors.
