• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71556

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tonmeister 818 Phono - Körting-Radio; Leipzig, später

• Shape

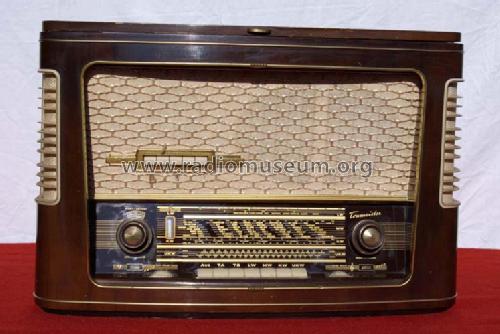

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 585 x 400 x 330 mm / 23 x 15.7 x 13 inch

• Notes

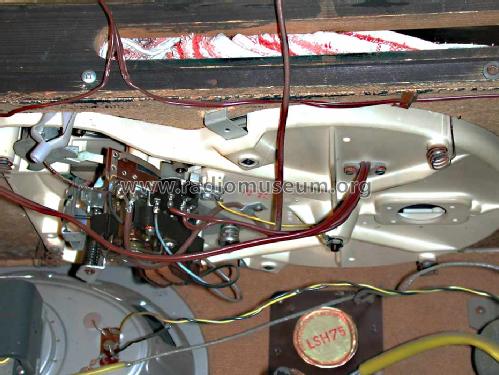

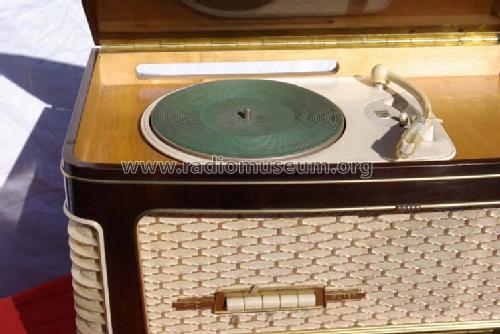

• Das Gerät wurde auch über Neckermann vertrieben. UKW - Abstimmung dient gleichzeitig als KW - Lupe. Plattenspieler: Philips NG 1260/75.

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie (Band 6, Seite 140)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
