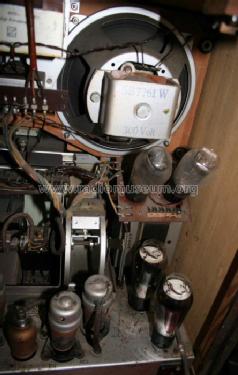

Ultramar SB7361W; Körting-Radio; (ID = 152000) Radio Ultramar SB7361W; Körting-Radio; (ID = 152001) Radio
Ultramar SB7361W; Körting-Radio; (ID = 1380749) Radio Ultramar SB7361W; Körting-Radio; (ID = 1696083) Radio
Use red slider bar for more.
Ultramar SB7361W; Körting-Radio; (ID = 2945) Radio
Körting-Radio;: Ultramar SB7361W [Radio] ID = 2945 934x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ultramar SB7361W, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: AH1 AC2 AH1 AF3 ABC1 AC2 AC2 RE604 RE604 RGN1064 RGN1064
Main principle Super-Heterodyne (Super in general); ZF/IF 485 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Ultramar SB7361W - Körting-Radio; Leipzig, später
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Stationsanzeige.
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch (?)


All listed radios etc. from Körting-Radio; Leipzig, später Grassau
Here you find 718 models, 561 with images and 416 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
