Weltfunk TD5543P 88-00-4302

Weltfunk TD5543P 88-00-4302; Krefft AG, W.; (ID = 496405) Television

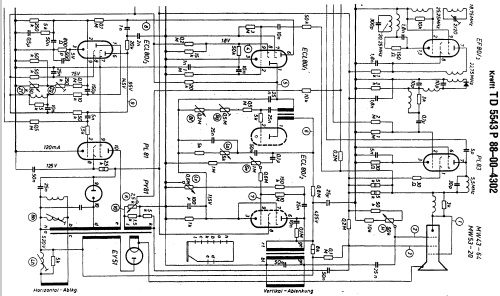

Weltfunk TD5543P 88-00-4302; Krefft AG, W.; (ID = 496406) Television
Weltfunk TD5543P 88-00-4302; Krefft AG, W.; (ID = 286337) Television Weltfunk TD5543P 88-00-4302; Krefft AG, W.; (ID = 1758732) Television
Weltfunk TD5543P 88-00-4302; Krefft AG, W.; (ID = 1758733) Television
Use red slider bar for more.
Weltfunk TD5543P 88-00-4302; Krefft AG, W.; (ID = 286337) Television
Krefft AG, W.;: Weltfunk TD5543P 88-00-4302 [Television] ID = 286337 714x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltfunk TD5543P 88-00-4302, Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk

Country:  Germany
Manufacturer / Brand:  Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk
Year: 1954/1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC84 PCC85 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 ECL80 ECL80 ECL80 PL81 PY81 EY51 PY82 PY82 MW43-64
Main principle Super-Heterodyne (Super in general); ZF/IF 25750/5500 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Weltfunk TD5543P 88-00-4302 - Krefft AG, W.; Gevelsberg
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 490 x 420 mm / 20.1 x 19.3 x 16.5 inch
Notes 10 VHF-Kanäle + 2 Reserve. Röhrenbestückung des Tuners laut VDRG-Handbuch 1954/55 PCC84+ECC81.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
Price in first year of sale 898.00 DM
Collectors' prices
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) Lange, Schaltungen der Funkindustrie (Band 6, S. 284 f.)
