For model Cosmos, Kretzschmar, Max, Radio-Kristallwerk; Berlin:

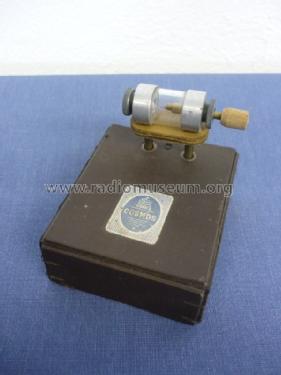

mit Cosmos Aufsteck-Detektor

Country:  Germany
Manufacturer / Brand:  Kretzschmar, Max, Radio-Kristallwerk; Berlin
Year: 1943 ? Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Cosmos - Kretzschmar, Max, Radio-
Material Various materials
Dimensions (WHD) 65 x 32 x 80 mm / 2.6 x 1.3 x 3.1 inch

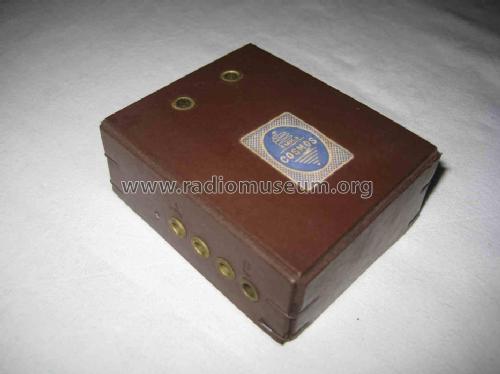

Notes auch mit Sirutor. Hier zwei Versionen bekannt I: 3x Antennenbuchsen u. 1x Erde links, rechts 4x Kopfhörerbuchsen. II: links u. rechts je 2x KH-Buchsen, hinten 2x Antenne, 1x Erde.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9496 --> Heft Nr. 96 Jahrgang 1994)


All listed radios etc. from Kretzschmar, Max, Radio-Kristallwerk; Berlin
Here you find 13 models, 11 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
