Ortsempfänger OE333

Krischker & Nehoda; Wien

  • Year
  • 1927–1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 160562
    • alternative name: Boss

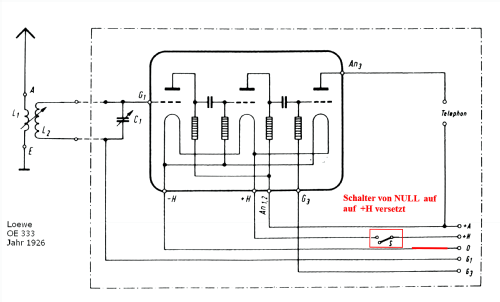

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 3NF
  • Main principle
  • TRF without regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 90+4 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: Ortsempfänger OE333 - Krischker & Nehoda; Wien
  • Dimensions (WHD)
  • 130 x 180 x 60 mm / 5.1 x 7.1 x 2.4 inch
  • Notes
  • Offensichtlich von Krischker als Import- oder Lizenzmodell vertrieben.
  • Net weight (2.2 lb = 1 kg)
  • 0.870 kg / 1 lb 14.7 oz (1.916 lb)
  • Price in first year of sale
  • 115.00 ATS
