Capri Ch= Nordmende 350-10GW

Capri Ch= Nordmende 350-10GW; Kuba Kuba-Imperial, (ID = 1306158) Radio Capri Ch= Nordmende 350-10GW; Kuba Kuba-Imperial, (ID = 1306159) Radio
Use red slider bar for more.
Capri Ch= Nordmende 350-10GW; Kuba Kuba-Imperial, (ID = 1306158) Radio
Kuba Kuba-Imperial,: Capri Ch= Nordmende 350-10GW [Radio] ID = 1306158 500x394
Select picture or schematic to display from thumbnails on the right and click for download.

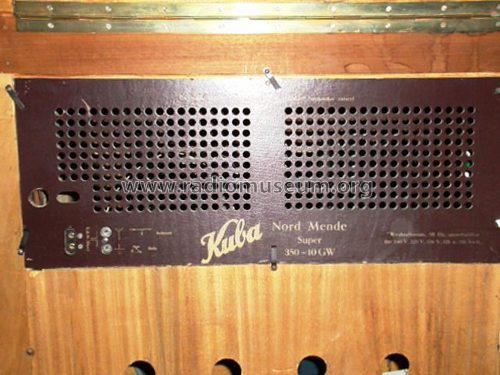

For model Capri Ch= Nordmende 350-10GW, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
Bild aus einem Auktionshaus mit Zustimmung vom Mitglied guenter3793

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UF85 UCH81 UCH81 UF85 UM4 UABC80 UL41
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage AC/DC-set / 110; 125; 150; 220; 240; Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Capri Ch= Nordmende 350-10GW - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1000 x 790 x 430 mm / 39.4 x 31.1 x 16.9 inch
Notes

Rundfunk-Chassis= Nordmende 350-10GW

Phono-Chassis = Dual 265U

Model page created by Bernd Krings. See "Data change" for further contributors.
