Komet Super-Luxus-Automatic 1223SL

• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1960/1961

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 15622

• • alternative name: Imperial Kuba

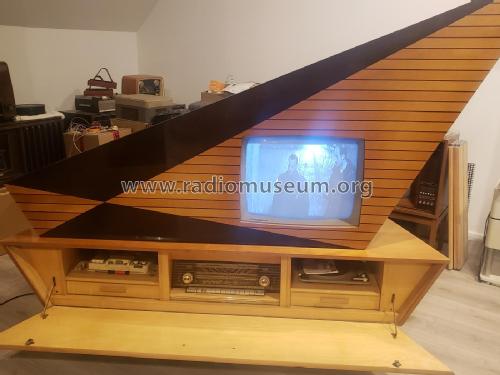

• Picture

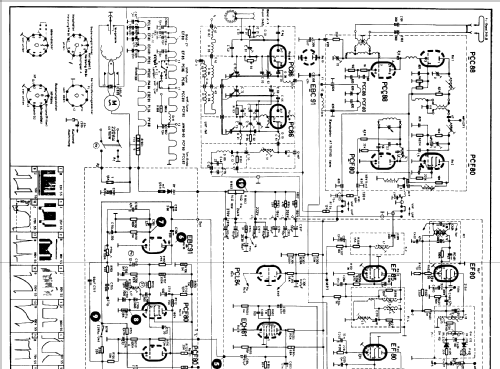

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Komet Super-Luxus-Automatic 1223SL - Kuba Kuba-Imperial, G.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 2160 x 1710 x 680 mm / 85 x 67.3 x 26.8 inch

• Notes

• Fernseh-Chassis = Imperial 1223SL
  Rundfunk-Chassis = 609a Stereo
  Phono-Chassis = Dual 1007
  Auf Wunsch mit Tonbandgerät.

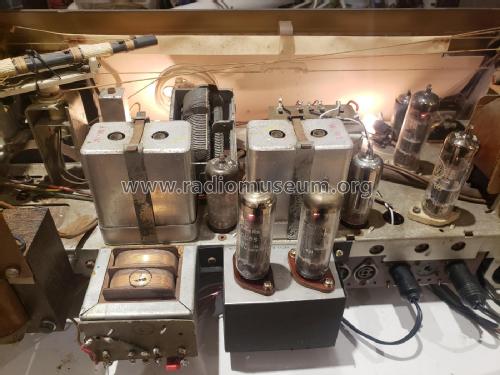

  Auch mit Rundfunk Chassis J 609 Stereo 2, dann 2 Gegentaktendstufen mit je 2x ECL86
  Ausgangsleistung 2x 11W.

• Net weight (2.2 lb = 1 kg)
• 131 kg / 288 lb 8.7 oz (288.546 lb)

• Price in first year of sale
• 2,748.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Historische Radios Band III (143)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
