Porta Color CK211P Ch= C211

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 452837) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 452838) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1340800) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1340801) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1340802) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1343823) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1343824) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1343825) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1343826) Television

Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 1343827) Television
Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458241) Television Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458245) Television
Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458242) Television Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 422985) Television
Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 422846) Television Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 236602) Television
Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458243) Television Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458244) Television
Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458246) Television Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458248) Television
Use red slider bar for more.
Porta Color CK211P Ch= C211; Kuba Kuba-Imperial, (ID = 458241) Television
Kuba Kuba-Imperial,: Porta Color CK211P Ch= C211 [Television] ID = 458241 933x675

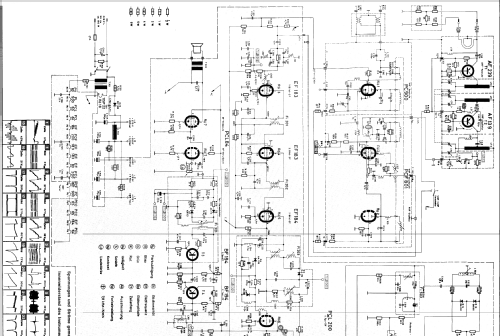

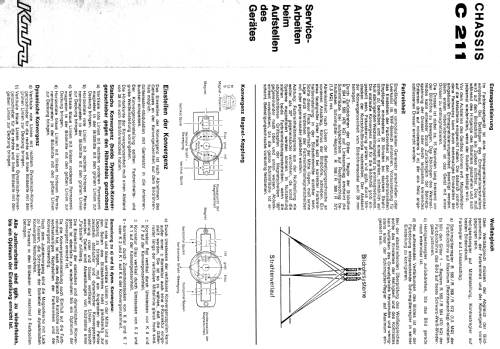

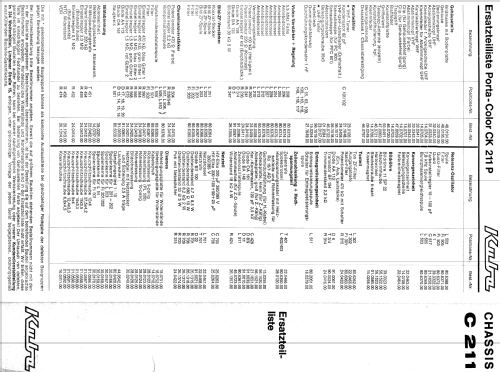

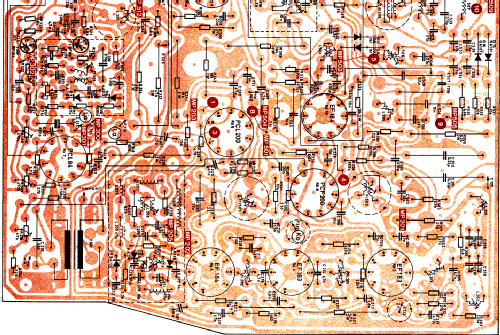

Select picture or schematic to display from thumbnails on the right and click for download.
For model Porta Color CK211P Ch= C211, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1967–1969 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PC900 PCF801 EF183 EF183 EF184 PCL200 PCL84 PCF200 PCL84 EF184 PCC85 PCC85 PCL85 EF184 PL500 PY83 1AD2 11SP22
Semiconductors (the count is only for transistors) 4: AF239 AF139 BF194 BF194
Main principle Super-Heterodyne (Super in general); ZF/IF 38900/5500 kHz; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: Porta Color CK211P Ch= C211 - Kuba Kuba-Imperial, G.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 300 x 420 mm / 16.9 x 11.8 x 16.5 inch
Notes

Das Farb-Portable Kuba Porta-Color CK 211P ist mit einer 28-cm-Spezial-Farbbildröhre mit waagerechten Strahlsystemen (Inline) ausgestattet.
Erstes Gerät mit Simple-PAL Decoder (optischer Ausgleich der alternativ Zeile anstelle der 64 µs Verzögerungsleitung).
Empfangsbereiche VHF/UHF mit getrennten Kanalwählern.

Siehe auch das italienische Modell Telefunken Telecolor T479 mit identischem Chassis.

Grundlage für den Kuba Portacolor war das gleichnamige Modell von General Electric, das ab 1966 in den USA angeboten wurde. Während Gehäuse, Bildrohr und Zeilentrafo nebst Hochspannungs-Gleichrichterröhre von GE stammen, ist die gesamte Schaltung eine Eigenentwicklung. Der originale GE Porta Color M21THW1 des NTSC-Standards verwendet überwiegend Compactron-Röhren.

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 1,500.00 DM
Collectors' prices
Source of data Handbuch VDRG 1968/1969
Mentioned in Funkschau (1967 Heft 19)
Literature/Schematics (1) Handbuch Rundfunk Fernsehen Phono 1967/68 (RFP) Verlag Funk-Kurier, Thiele

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
Here you find 723 models, 670 with images and 159 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
