• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23576

• • alternative name: Imperial Kuba

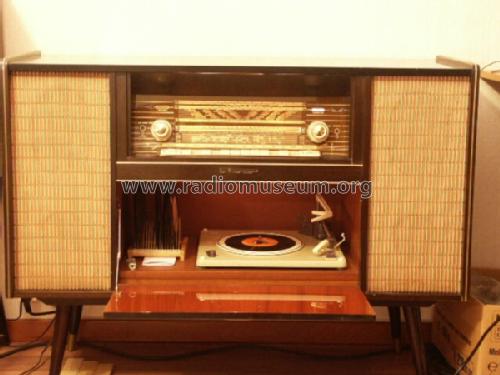

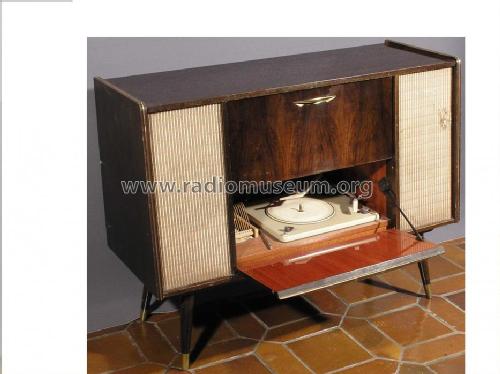

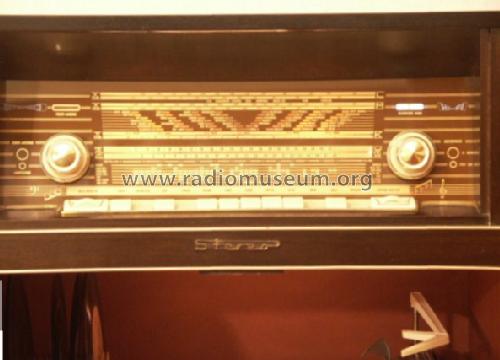

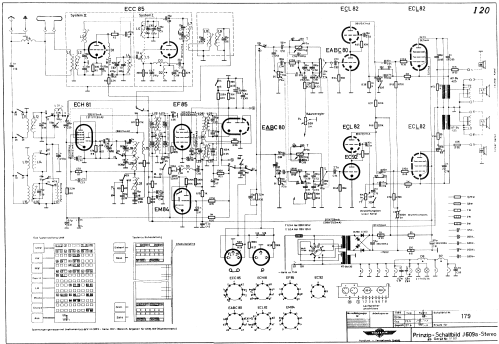

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 ECC85 ECH81 EF85 EM84 EABC80 ECL82 ECL82

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Undine Ch= 609a - Kuba Kuba-Imperial, G.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1030 x 785 x 400 mm / 40.6 x 30.9 x 15.7 inch

• Notes
• Rundfunk-Chassis = Imperial 609a;
  Phono-Chassis = k. A.

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 737 models, 682 with images and 259 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
