206A

206A; Kungs Brand; (ID = 664808) Radio

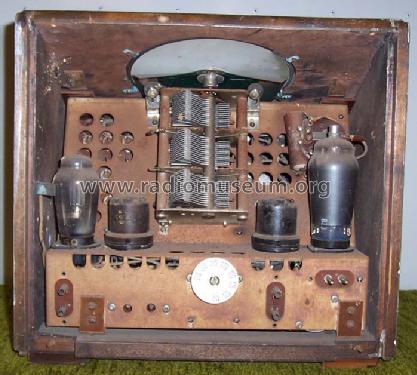

206A; Kungs Brand; (ID = 402648) Radio 206A; Kungs Brand; (ID = 402650) Radio
206A; Kungs Brand; (ID = 402649) Radio
Use red slider bar for more.
206A; Kungs Brand; (ID = 402648) Radio
Kungs Brand;: 206A [Radio] ID = 402648 700x670
Select picture or schematic to display from thumbnails on the right and click for download.
For model 206A, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 CL6 CY2
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 206A - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 320 x 295 x 210 mm / 12.6 x 11.6 x 8.3 inch
Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)
Price in first year of sale 198.00 SEK
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
