306A

306A; Kungs Brand; (ID = 659703) Radio
306A; Kungs Brand; (ID = 116695) Radio 306A; Kungs Brand; (ID = 116696) Radio
306A; Kungs Brand; (ID = 116698) Radio 306A; Kungs Brand; (ID = 116697) Radio
306A; Kungs Brand; (ID = 116699) Radio 306A; Kungs Brand; (ID = 116700) Radio
Use red slider bar for more.
306A; Kungs Brand; (ID = 116695) Radio
Kungs Brand;: 306A [Radio] ID = 116695 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 306A, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EBC11 CL6 6N5 CY2
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 306A - Kungs Brand; Göteborg
Material Wooden case

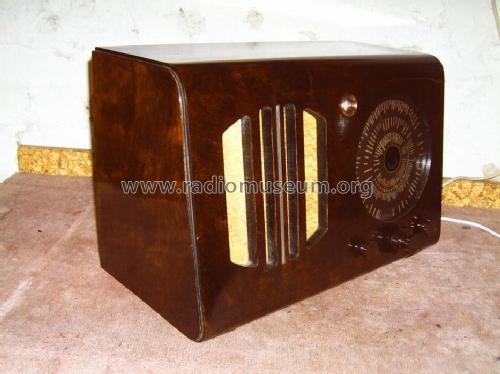

Shape Tablemodel, low profile (big size).

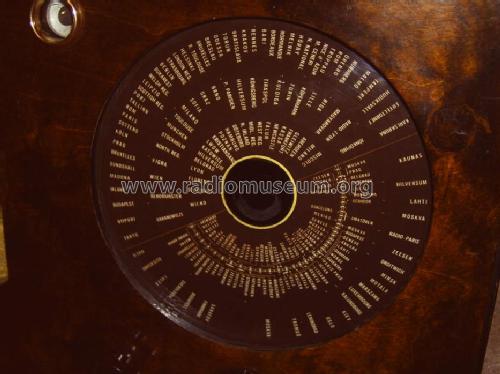

Notes Die Skala ist komplett drehbar, ein Lichtspalt wird von hinten auf den eingestellten Sender projeziert. Anschluß für Grammophon, Klangregler.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)

Model page created by Olaf Pietrucha. See "Data change" for further contributors.



All listed radios etc. from Kungs (Brand); Göteborg
Here you find 166 models, 71 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
