• Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 123133
    • alternative name: Kungsradio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

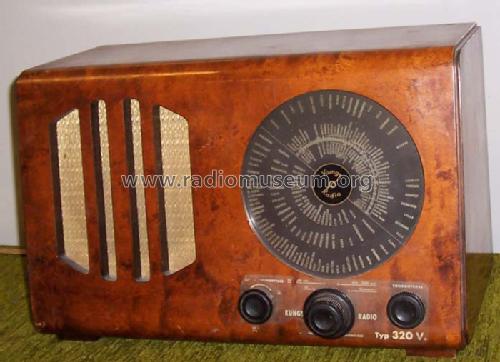

  • Model: 320V - Kungs Brand; Göteborg
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 470 x 300 x 240 mm / 18.5 x 11.8 x 9.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 13.7 kg / 30 lb 2.8 oz (30.176 lb)
  • Price in first year of sale
  • 250.00 SEK
  • Source of data
  • - - Data from my own collection
