• Year
  • 1940 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 162265
    • alternative name: Kungsradio

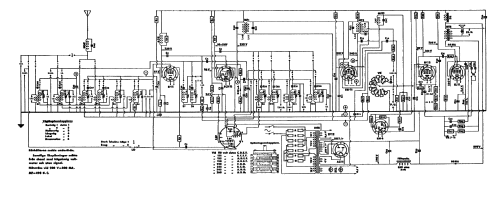

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 498 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 135; 150; 220; 235; 245; 260 Volt
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: 525V - Kungs Brand; Göteborg
  • Source of data
  • -- Schematic
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
