- Country
- Argentina
- Manufacturer / Brand
- Laboratorios Douglas S.A.C.I.; Buenos Aires
- Year
- 1933 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 190560
-
- alternative name: Douglas Argentina

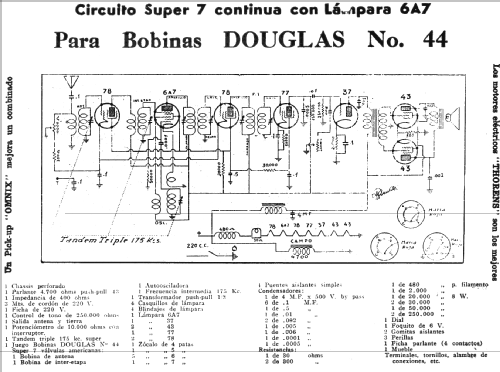

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 3 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Direct Current supply (DC) / 220 Volt
- Power out
- 5 W (unknown quality)
- from Radiomuseum.org
- Model: 44 - Laboratorios Douglas S.A.C.I.;
- Notes
- Parlante 4700 ohms salida push-pull 43.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Cristian Wolkenstein. See "Data change" for further contributors.
