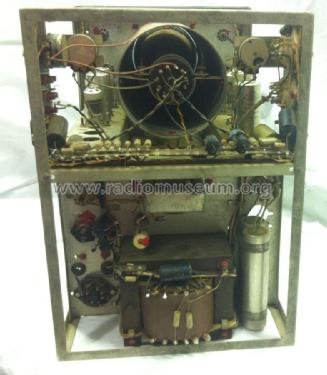

Osciloscopio LE19; LME Laboratorio de (ID = 1879923) Equipment Osciloscopio LE19; LME Laboratorio de (ID = 1879924) Equipment
Osciloscopio LE19; LME Laboratorio de (ID = 1891327) Equipment
Use red slider bar for more.
Osciloscopio LE19; LME Laboratorio de (ID = 320839) Equipment
LME Laboratorio de: Osciloscopio LE19 [Equipment] ID = 320839 483x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model Osciloscopio LE19, LME Laboratorio de Metrologia Electrónica; Barcelona

Country:  Spain
Manufacturer / Brand:  LME Laboratorio de Metrologia Electrónica; Barcelona
Year: 1959 Category: Service- or Lab Equipment
Valves / Tubes 12: ECC81 ECC81 ECC81 ECC82 ECC83 EF80 EL83 EL83 ECC81 EZ80 EB91 DG10-3 0A2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Osciloscopio LE19 - LME Laboratorio de Metrologia
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 345 x 440 mm / 9.8 x 13.6 x 17.3 inch
Notes

Laboratorio de Metrología Electrónica (LME), LE-19

Osciloscopio con pantalla de 100 mm. Ø. Ancho de banda 10 MHz.



Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 15'800.00 Pts
Mentioned in -- Original prospect or advert ("Electrónica", nº49 December 1958)
Literature/Schematics (1) Tarifa oficial de precios LME junio 1959
