• Country
• France

• Manufacturer / Brand
• Lafayette-France (La Fayette), Comptoir du Sud-Ouest; Paris, Bordeaux

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63100

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

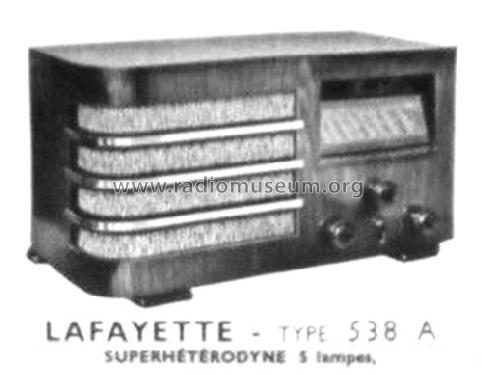

• Model: 538 A - Lafayette-France La Fayette,

• Shape
• Tablemodel, low profile (big size).

• Notes

• 3 gammes d'ondes : OC de 19 à 50 m, PO de 195 à 570 m, GO de 1000 a 2000 m. Indicateur d'accord à ombre.

  Supplément pour 25 périodes : 35 Fr.

• External source of data
• Serge Laffont/Martin Renoth
