- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242281
-
- alternative name: Wholesale Radio

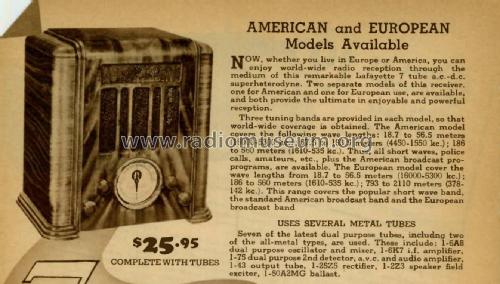

1936 Lafayette catalog no.63, page 8
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- 50A2MG
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: J-79 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 12.25 x 12.75 x 7.75 inch / 311 x 324 x 197 mm
- Notes
-
Wave bands and voltage for USA model. European version also available.
Includes a 2Z3 speaker field exciter.
- Price in first year of sale
- 25.95 USD
- Mentioned in
- Machine Age to Jet Age II (page 182.)
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 161.)
- Literature/Schematics (2)
- Lafayette Radio Catalog (1936 catalog no. 63, page 8)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
