• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1933/1934

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 159843

• • alternative name: Wholesale Radio

• Number of Tubes
• 7

• Valves / Tubes
• 78 77 37 43 25Z5

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: N13841 PAL 5 tube Super-Het Kit - Lafayette Radio & TV Corp; New

• Shape
• Chassis only or for «building in»

• Notes

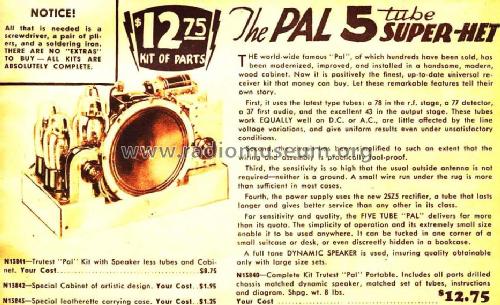

• The Lafayette catalog calls this kit model "The PAL 5 tube SUPER-HET. The number N13841 is the kit less tubes and cabinet. N13842 is a special cabinet for $ 1.95 and N13843 is a special leatherette carrying case for $ 1.25 The N13840 is the complete kit Trutest PAL portable and includes matched dynamic speaker, set of tubes instructions and diagram. Two knobs horizontal.

  The chassis Trutest PAL is sold for $ 8.85 (without tubes and loadspeaker). See details for the models of this catalog.

• Price in first year of sale
• 9.00 $

• Literature/Schematics (1)
• Lafayette Radio Catalog (Lafayette catalog no. 55 for 1934, page 17.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
