• Country
• Germany

• Manufacturer / Brand
• Lange GmbH, Johannes; Plauen i. Vogtland

• Year
• 1932–1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159210

• • alternative name: Vogtländische Radio-Gesellschaft mbH
  • Brand: Longa

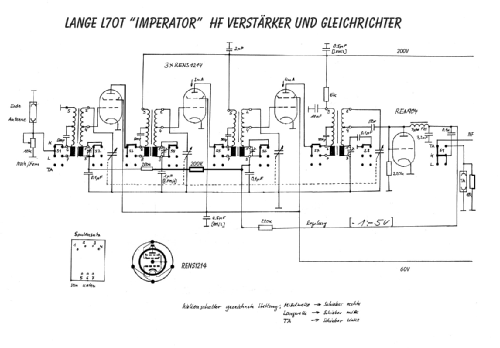

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• RENS1214 RENS1214 RENS1214 REN904 REN904 REN904 RE604 RE604 RGN2004

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: L70 Chassis - Lange GmbH, Johannes; Plauen i

• Shape
• Chassis only or for «building in»

• Notes
• Preis einschließlich Lautsprecher, aber ohne Röhren. Röhrensatz 136,75 RM;

• Price in first year of sale
• 295.00 RM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
