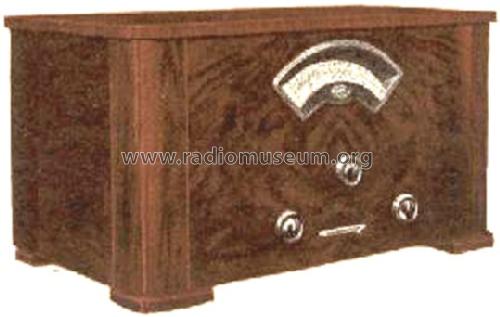

L70 (Tischmodell)
Lange GmbH, Johannes; Plauen i. Vogtland
- Country
- Germany
- Manufacturer / Brand
- Lange GmbH, Johannes; Plauen i. Vogtland
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15728
-
- alternative name: Vogtländische Radio-Gesellschaft mbH
- Brand: Longa
- Number of Tubes
- 8
- Main principle
- TRF without regeneration; 3 Special; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: L70 - Lange GmbH, Johannes; Plauen i
- Dimensions (WHD)
- 590 x 320 x 310 mm / 23.2 x 12.6 x 12.2 inch
- Notes
-
Spätere Modelle haben Automatischen Fadingausgleich. (Siehe z.B. L70T)
Preis ohne Röhren, zusätzlich Röhrensatz Preis: 143,50 RM
- Price in first year of sale
- 525.00 RM +
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- FS-Bestückungstab. (wahrsch. m.Fehler)
