Realistic 7

Realistic 7; Lasky's Radio; (ID = 904850) Kit

Realistic 7; Lasky's Radio; (ID = 904854) Kit

Realistic 7; Lasky's Radio; (ID = 904853) Kit

Realistic 7; Lasky's Radio; (ID = 904852) Kit
Realistic 7; Lasky's Radio; (ID = 2022032) Kit Realistic 7; Lasky's Radio; (ID = 2022033) Kit
Realistic 7; Lasky's Radio; (ID = 2022034) Kit Realistic 7; Lasky's Radio; (ID = 2022035) Kit
Realistic 7; Lasky's Radio; (ID = 2022036) Kit Realistic 7; Lasky's Radio; (ID = 904858) Kit
Realistic 7; Lasky's Radio; (ID = 2022037) Kit
Use red slider bar for more.
Realistic 7; Lasky's Radio; (ID = 2022032) Kit
Lasky's Radio;: Realistic 7 [Kit] ID = 2022032 900x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic 7, Lasky's Radio; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Lasky's Radio; London
Year: 1962 ? Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC81 OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: Realistic 7 - Lasky's Radio; London
Material Plastics (no bakelite or catalin)

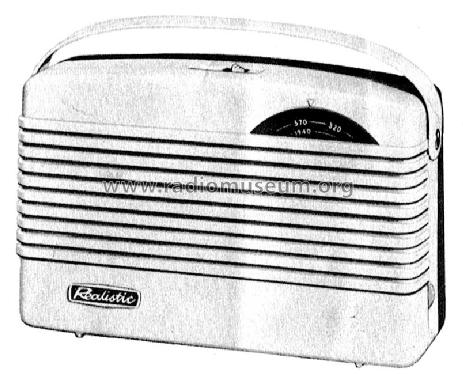

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10 x 7 x 3.5 inch / 254 x 178 x 89 mm
Notes

Receives broadcast/medium: 190 to 570 metres (1570 - 525 kc) and long waves 1090 to 1940 metres = 275 - 155 kc. Price for the entire kit was £ 6.19.6d.

This is a DIY kit version of the Perdio PR25 supplied to Laskys by Perdio Electronics Ltd

Price in first year of sale 6.19 £
Source of data -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Lasky's Radio; London
Here you find 7 models, 4 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
