• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 238838

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC83 ECC83 ECH81 6L6 6L6 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

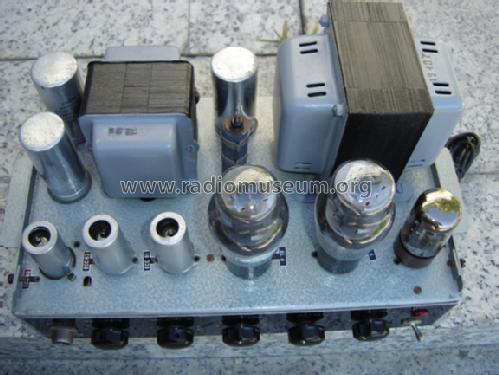

• Model: Amplificatore 526T/2 - LESA ; Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 210 x 190 mm / 13 x 8.3 x 7.5 inch

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Author
• Model page created by José Pinto. See "Data change" for further contributors.
