Kardinal 5713; Linnet & Laursen LL (ID = 260670) Radio

Kardinal 5713; Linnet & Laursen LL (ID = 445090) Radio

{gbW: "680", gbH: "460", mW: "500", mH: "338.0", kb: "102 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Ake Nyholm (1)", ite: "1"} {gbW: "580", gbH: "363", mW: "500", mH: "312.0", kb: "100 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Ake Nyholm (1)", ite: "1"} {gbW: "600", gbH: "399", mW: "500", mH: "332.0", kb: "105 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Ake Nyholm (1)", ite: "1"} {gbW: "600", gbH: "290", mW: "500", mH: "241.0", kb: "96 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Ake Nyholm (1)", ite: "1"} {gbW: "640", gbH: "303", mW: "500", mH: "236.0", kb: "89 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Ake Nyholm (1)", ite: "1"} {gbW: "900", gbH: "473", mW: "500", mH: "262.0", kb: "94 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Ake Nyholm (1)", ite: "1"} {gbW: "720", gbH: "509", mW: "500", mH: "353.0", kb: "96 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Ake Nyholm (1)", ite: "1"} {gbW: "800", gbH: "600", mW: "500", mH: "375", kb: "78 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Thorsten Finaske (1)", ite: "1"} {gbW: "880", gbH: "600", mW: "500", mH: "340.0", kb: "83 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Thorsten Finaske (1)", ite: "1"} {gbW: "800", gbH: "600", mW: "500", mH: "375", kb: "83 KB", notes: "For model Kardinal 5713, Linnet & Laursen (LL) A/S; København", title: "Linnet & Laursen LL Kardinal 5713 from Thorsten Finaske (1)", ite: "1"}

Kardinal 5713; Linnet & Laursen LL (ID = 260409) Radio

Kardinal 5713; Linnet & Laursen LL (ID = 260411) Radio

Kardinal 5713; Linnet & Laursen LL (ID = 260415) Radio

Kardinal 5713; Linnet & Laursen LL (ID = 1576519) Radio

Kardinal 5713; Linnet & Laursen LL (ID = 1576521) Radio

Kardinal 5713; Linnet & Laursen LL (ID = 1576522) Radio

Next pictures

Use red slider bar for more.

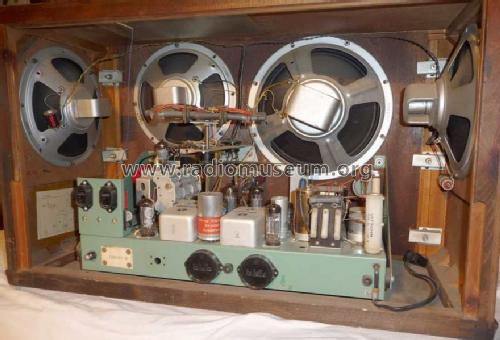

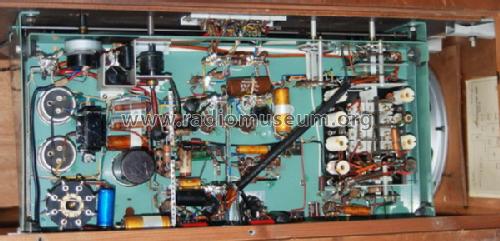

Linnet & Laursen LL: Kardinal 5713 [Radio] ID = 260409 680x460

Select picture or schematic to display from thumbnails on the right and click for download.

For model Kardinal 5713, Linnet & Laursen (LL) A/S; København

Country:

Denmark

Manufacturer / Brand:

Linnet & Laursen (LL) A/S; København

Year: 1957 ?

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

10: UCC85 UF80 UCH81 UF80 UM4 UABC80 UAF42 UCC85 UL84 UL84

Main principle	to an article Superhet with RF-stage; ZF/IF ? kHz; 3 AF stage(s)
Tuned circuits	8 AM circuit(s) 7 FM circuit(s)
Wave bands	Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage	AC/DC-set / 110/220 Volt
Loudspeaker	4 Loudspeakers
Power out	10 W (unknown quality)
from Radiomuseum.org	Model: Kardinal 5713 - Linnet & Laursen LL A/S;
Material	Wooden case
Shape	Tablemodel with Push Buttons.
Dimensions (WHD)	680 x 415 x 300 mm / 26.8 x 16.3 x 11.8 inch
Notes	Speakers: 1× 26 cm, 3× 22 cm. Double ferrite rod antenna.
Net weight (2.2 lb = 1 kg)	20 kg / 44 lb 0.8 oz (44.053 lb)
Source of data	- - Data from my own collection

Model page created by Ake Nyholm. See "Data change" for further contributors.

All listed radios etc. from Linnet & Laursen (LL) A/S; København
Here you find 68 models, 63 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Ake Nyholm (FIN)

Collection of Thorsten Finaske (D)

Forum contributions about this model

Linnet & Laursen LL: Kardinal 5713

Threads: 1 | Posts: 3

Hits: 1665 Replies: 2 linnet: 5713; Kardinal
Ake Nyholm 03.Jan.09	1 linnet: 5713; Kardinal I am restoring at the moment a Linnet &Laursen radio model Kardinal 5713 and should be glad to find intructions for the RF and IF tunings. The main issue should be to know proper frequencis and placement of the tuning points. I look forward if somebody could kindly help me get this nice radio to good working condition. Thank you. Best regards Ake
Mark Hippenstiel 04.Jan.09	2 rfr Hello Ake, did you ever try to contact Radiohistorisk Forening in Ringsted? Regards Mark
Ake Nyholm 05.Jan.09	3 No subject Hi Mark, Thank you for your hint, I'll try to contact them. Circuit diagarm of the 5713 is a bit "light" without any quidance for tuning frequencies. So there sould be be to much quess work without additional information. Construction of RF and IF sections are not so commmon but having some intersting details. Regards Ake
