Minerva 594
Linnet & Laursen (LL) A/S; København
- Country
- Denmark
- Manufacturer / Brand
- Linnet & Laursen (LL) A/S; København
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 352346
Zwei Haupt-Drehknöpfe von innen beleuchtet.
Klangtasten.
Bereichswahl.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

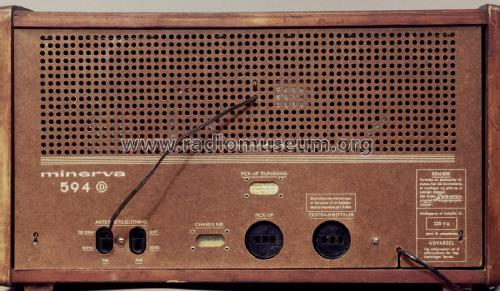

- Model: Minerva 594 - Linnet & Laursen LL A/S;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 345 x 280 mm / 23.6 x 13.6 x 11 inch
- Notes
-
Trockengleichrichter / Ovallautsprecher 27 x 15 cm / 3-stufige Klangtasten / schaltbare und drehbare Ferritantenne mit zwei Stäben.
Das Chassis erscheint bis auf die andere Anzeigeröhre (UM4 vers. UM84) gleich wie Minerva Special 6005
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Author
- Model page created by Wilhelm Siepe. See "Data change" for further contributors.
