Minerva 6407

Minerva 6407; Linnet & Laursen LL (ID = 1827773) Radio

Minerva 6407; Linnet & Laursen LL (ID = 1827774) Radio

Minerva 6407; Linnet & Laursen LL (ID = 1827775) Radio
Use red slider bar for more.
Minerva 6407; Linnet & Laursen LL (ID = 1827773) Radio

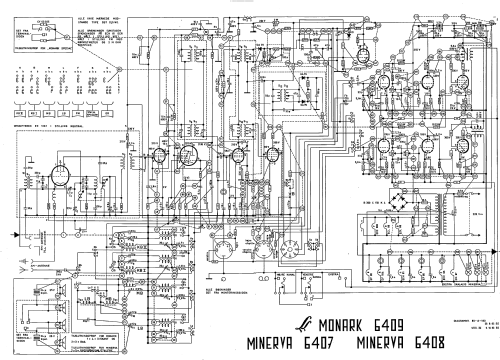

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Denmark
Manufacturer / Brand:  Linnet & Laursen (LL) A/S; København
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 EF80 ECH81 EF184 EM87 EF80 ECC808 ECL86 ECL86
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Minerva 6407 - Linnet & Laursen LL A/S;
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

See also Monark 6409

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Mentioned in - - Manufacturers Literature

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from Linnet & Laursen (LL) A/S; København
Here you find 68 models, 64 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
