Monark FM-AM 573

Monark FM-AM 573; Linnet & Laursen LL (ID = 674479) Radio

Monark FM-AM 573; Linnet & Laursen LL (ID = 2405679) Radio
Monark FM-AM 573; Linnet & Laursen LL (ID = 174026) Radio Monark FM-AM 573; Linnet & Laursen LL (ID = 174028) Radio
Monark FM-AM 573; Linnet & Laursen LL (ID = 231675) Radio Monark FM-AM 573; Linnet & Laursen LL (ID = 1209509) Radio
Monark FM-AM 573; Linnet & Laursen LL (ID = 1209510) Radio Monark FM-AM 573; Linnet & Laursen LL (ID = 1209512) Radio
Monark FM-AM 573; Linnet & Laursen LL (ID = 1209513) Radio
Use red slider bar for more.
Monark FM-AM 573; Linnet & Laursen LL (ID = 174026) Radio

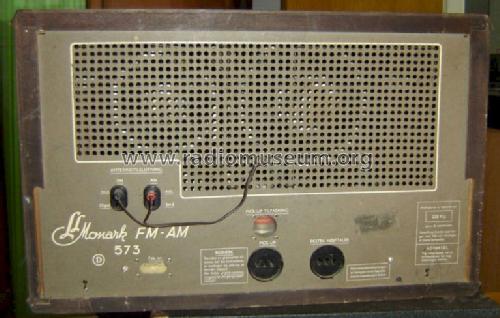

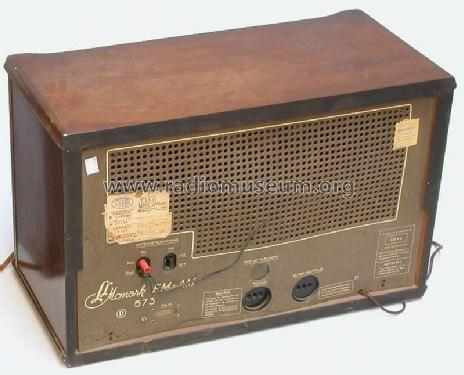

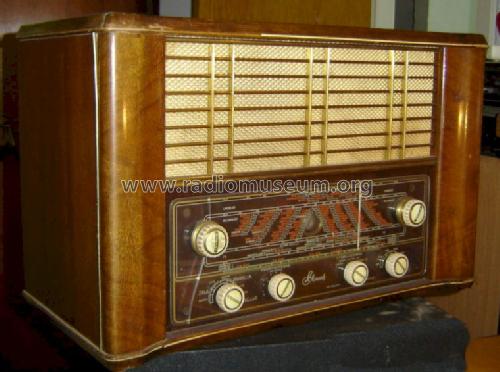

Linnet & Laursen LL: Monark FM-AM 573 [Radio] ID = 174026 800x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monark FM-AM 573, Linnet & Laursen (LL) A/S; København:
By courtesy of Lauritz.com

Country:  Denmark
Manufacturer / Brand:  Linnet & Laursen (LL) A/S; København
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF80 UABC80 UM4 UAF42 UL84
Semiconductors (the count is only for transistors) OA81 Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Monark FM-AM 573 - Linnet & Laursen LL A/S;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 370 x 270 mm / 22.8 x 14.6 x 10.6 inch
Notes

Built-in orientable ferrite antenna. Socketed pick-up correction unit (Pick-up Tilpasning): Type 1332 (50 Ω), Type 41 (1,5 Ω), or "Højohm".

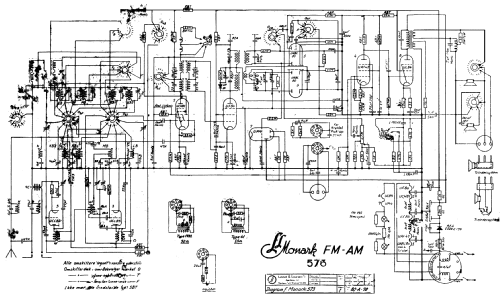

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from Linnet & Laursen (LL) A/S; København
Here you find 68 models, 63 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
