Piccolo 522

Piccolo 522 ; Linnet & Laursen LL (ID = 1919506) Radio
Piccolo 522 ; Linnet & Laursen LL (ID = 1919502) Radio Piccolo 522 ; Linnet & Laursen LL (ID = 1919503) Radio

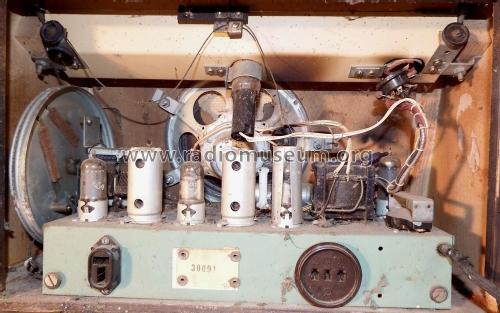

Piccolo 522 ; Linnet & Laursen LL (ID = 1919504) Radio Piccolo 522 ; Linnet & Laursen LL (ID = 1919505) Radio
Use red slider bar for more.
Piccolo 522 ; Linnet & Laursen LL (ID = 1919502) Radio
Linnet & Laursen LL: Piccolo 522 [Radio] ID = 1919502 1000x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model Piccolo 522, Linnet & Laursen (LL) A/S; København:
Image taken from polish online auction portal .allegro.pl. Auction number: 5787220531

Country:  Denmark
Manufacturer / Brand:  Linnet & Laursen (LL) A/S; København
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UAF42 UM4 UL41 UY41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Piccolo 522 - Linnet & Laursen LL A/S;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 290 x 220 mm / 17.3 x 11.4 x 8.7 inch

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.



All listed radios etc. from Linnet & Laursen (LL) A/S; København
Here you find 68 models, 64 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
