Sunshine 8409

Sunshine 8409; Lissen Ltd.; London (ID = 1670167) Radio Sunshine 8409; Lissen Ltd.; London (ID = 1670168) Radio

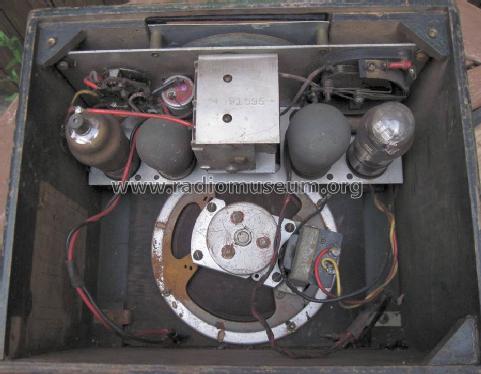

Sunshine 8409; Lissen Ltd.; London (ID = 1670177) Radio Sunshine 8409; Lissen Ltd.; London (ID = 1670179) Radio
Sunshine 8409; Lissen Ltd.; London (ID = 1670180) Radio Sunshine 8409; Lissen Ltd.; London (ID = 1670181) Radio
Sunshine 8409; Lissen Ltd.; London (ID = 1296574) Radio Sunshine 8409; Lissen Ltd.; London (ID = 1670182) Radio
Use red slider bar for more.
Sunshine 8409; Lissen Ltd.; London (ID = 1670167) Radio
Lissen Ltd.; London: Sunshine 8409 [Radio] ID = 1670167 933x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sunshine 8409, Lissen Ltd.; London and Richmond, Surrey

Country:  Great Britain (UK)
Manufacturer / Brand:  Lissen Ltd.; London and Richmond, Surrey
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: K50N K30K K30K K70B
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Sunshine 8409 - Lissen Ltd.; London and
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 240 x 185 mm / 11.2 x 9.4 x 7.3 inch
Notes

Portable valve receiver with an internal frame aerial, a handle on the top and a turntable underneath. Same chassis as the Ever Ready 5041. "Straight Battery ALL WEATHER Portable" on 1938 advert. Two tone "Crackle effect" paint like McMichael 463 on plywood cabinet.

90V HT is Lissen LN 3052 (Ever Ready Portable 61) giving about 200+ hours use.

2V LT is Ever Ready J203 20AH Celluloid cased Gel Lead Acid Accumulator ("jelly-acid"), about 30 hours operation between charging.

No GB battery as it's automatic via resistor in HT - lead like 1950s models.

Weight excludes batteries. Price new included batteries.

The next Lissen Portable was the "All Dry Series" in 1939. See All Dry Portable 8515

Net weight (2.2 lb = 1 kg) 4.1 kg / 9 lb 0.5 oz (9.031 lb)
Price in first year of sale 7.00 GBP
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (636)

Model page created by Howard Craven. See "Data change" for further contributors.
