151GW Variante klären 1

151GW; Loewe-Opta; (ID = 8387) Radio
151GW; Loewe-Opta; (ID = 385) Radio
Use red slider bar for more.
151GW; Loewe-Opta; (ID = 385) Radio

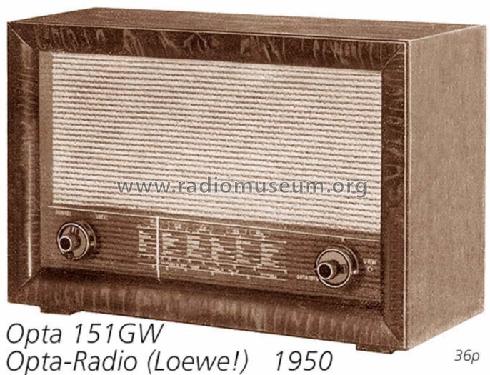

Loewe-Opta;: 151GW [Radio] ID = 385 687x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 151GW Variante klären 1, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: UEL11 U2410-425 3610-435
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage AC/DC-set / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 151GW [Variante klären 1] - Loewe-Opta; Deutschland
Material Wooden case
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
