Apollo 541W ECC81

Apollo 541W; Loewe-Opta; (ID = 872081) Radio
Apollo 541W; Loewe-Opta; (ID = 109205) Radio Apollo 541W; Loewe-Opta; (ID = 811853) Radio
Apollo 541W; Loewe-Opta; (ID = 71318) Radio Apollo 541W; Loewe-Opta; (ID = 811852) Radio
Apollo 541W; Loewe-Opta; (ID = 811854) Radio Apollo 541W; Loewe-Opta; (ID = 1443904) Radio
Apollo 541W; Loewe-Opta; (ID = 1443906) Radio Apollo 541W; Loewe-Opta; (ID = 1443907) Radio

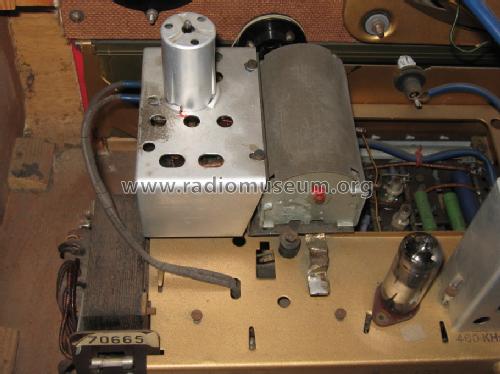

Apollo 541W; Loewe-Opta; (ID = 1443908) Radio Apollo 541W; Loewe-Opta; (ID = 1443910) Radio
Use red slider bar for more.
Apollo 541W; Loewe-Opta; (ID = 109205) Radio
Loewe-Opta;: Apollo 541W [Radio] ID = 109205 933x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model Apollo 541W ECC81, Loewe-(Opta); Deutschland:
Unrestauriert

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC81 ECH81 EF41 EABC80 EM34 EL41
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Apollo 541W [ECC81] - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 360 x 280 mm / 21.7 x 14.2 x 11 inch
Notes Diese Ausführung des Loewe Opta Apollo 541W hat noch die "ältere" Röhrenbestückung und 2 Lautsprecher (ein ovaler Breitbänder und ein el.statischer Hochton-Lautsprecher).
Siehe auch Apollo 541W mit ECC85 im UKW-Mischteil.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Collectors' prices
Literature/Schematics (1) -- Schematic

Model page created by Bernhard Nagel. See "Data change" for further contributors.
