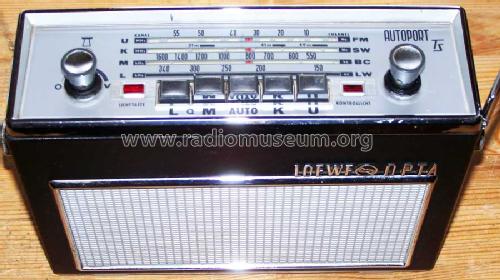

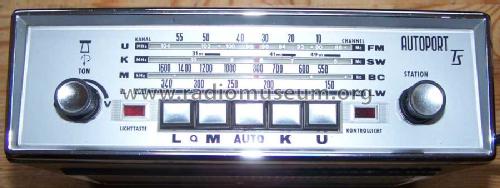

Autoport TS 52 385; Loewe-Opta; (ID = 630885) Radio
Loewe-Opta;: Autoport TS 52 385 [Radio] ID = 630885 929x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autoport TS 52 385, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1964–1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF124 AF125 AF125 AF126 AF126 AC151 AC151 AC153 AC153
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Autoport TS 52 385 - Loewe-Opta; Deutschland
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 170 x 80 mm / 9.6 x 6.7 x 3.1 inch
Notes Auch 6- und 12-V-Betrieb im Auto möglich. Auf Wunsch auch mit 5-W-Endstufe.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 429.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1965/1966
