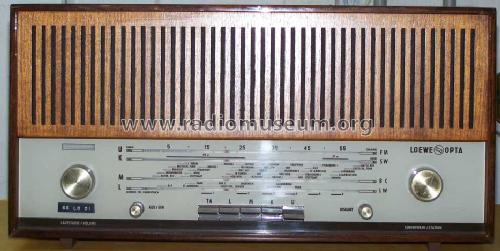

Bella 66 62 020; Loewe-Opta; (ID = 595406) Radio Bella 66 62 020; Loewe-Opta; (ID = 1297189) Radio
Bella 66 62 020; Loewe-Opta; (ID = 1410667) Radio Bella 66 62 020; Loewe-Opta; (ID = 1410668) Radio
Use red slider bar for more.

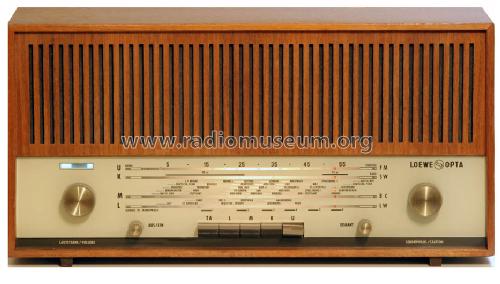

Bella 66 62 020; Loewe-Opta; (ID = 215024) Radio
Loewe-Opta;: Bella 66 62 020 [Radio] ID = 215024 933x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella 66 62 020, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EAF801 ECL86 EM84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Bella 66 62 020 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 450 x 235 x 150 mm / 17.7 x 9.3 x 5.9 inch
Notes Dioden: 2× AA113.
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
