Bella 67 82020

Bella 67 82020; Loewe-Opta; (ID = 246894) Radio

Bella 67 82020; Loewe-Opta; (ID = 246895) Radio
Bella 67 82020; Loewe-Opta; (ID = 269678) Radio Bella 67 82020; Loewe-Opta; (ID = 269679) Radio
Bella 67 82020; Loewe-Opta; (ID = 269680) Radio Bella 67 82020; Loewe-Opta; (ID = 210327) Radio
Bella 67 82020; Loewe-Opta; (ID = 1089362) Radio Bella 67 82020; Loewe-Opta; (ID = 1089363) Radio
Bella 67 82020; Loewe-Opta; (ID = 1089364) Radio Bella 67 82020; Loewe-Opta; (ID = 1199633) Radio
Bella 67 82020; Loewe-Opta; (ID = 1630186) Radio
Use red slider bar for more.

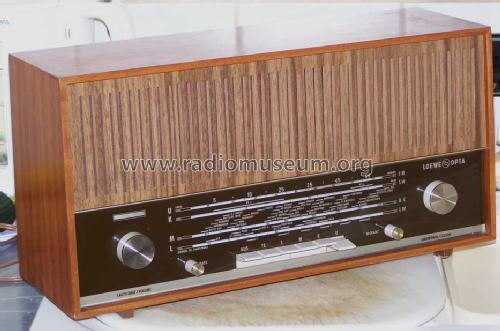

Bella 67 82020; Loewe-Opta; (ID = 269678) Radio
Loewe-Opta;: Bella 67 82020 [Radio] ID = 269678 933x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella 67 82020, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EAF801 ECL86 EM84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Bella 67 82020 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 460 x 230 x 150 mm / 18.1 x 9.1 x 5.9 inch
Notes Dioden: 2× AA113.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1310 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Loewe-Opta;: Bella 67 82020
Threads: 1 | Posts: 1
Hits: 1742     Replies: 0
loewe-opta: 82020; Bella 67
Jochen Bachmann
30.Mar.12
  1

Kein UKW Empfang

R63 war defekt ausgetauscht danach alles ok.

MfG


Loewe-Opta;: Bella 67 82020
End of forum contributions about this model
