Bella junior 62 010

Bella junior 62 010; Loewe-Opta; (ID = 535250) Radio

Bella junior 62 010; Loewe-Opta; (ID = 535251) Radio

Bella junior 62 010; Loewe-Opta; (ID = 535249) Radio

Bella junior 62 010; Loewe-Opta; (ID = 535252) Radio

Bella junior 62 010; Loewe-Opta; (ID = 535253) Radio

Bella junior 62 010; Loewe-Opta; (ID = 535254) Radio

Bella junior 62 010; Loewe-Opta; (ID = 65203) Radio

Bella junior 62 010; Loewe-Opta; (ID = 65204) Radio
Bella junior 62 010; Loewe-Opta; (ID = 63111) Radio Bella junior 62 010; Loewe-Opta; (ID = 63116) Radio
Bella junior 62 010; Loewe-Opta; (ID = 402110) Radio Bella junior 62 010; Loewe-Opta; (ID = 150079) Radio
Bella junior 62 010; Loewe-Opta; (ID = 150080) Radio Bella junior 62 010; Loewe-Opta; (ID = 402108) Radio
Bella junior 62 010; Loewe-Opta; (ID = 402109) Radio Bella junior 62 010; Loewe-Opta; (ID = 402111) Radio
Bella junior 62 010; Loewe-Opta; (ID = 402112) Radio Bella junior 62 010; Loewe-Opta; (ID = 657515) Radio
Use red slider bar for more.
Bella junior 62 010; Loewe-Opta; (ID = 63111) Radio
Loewe-Opta;: Bella junior 62 010 [Radio] ID = 63111 933x543

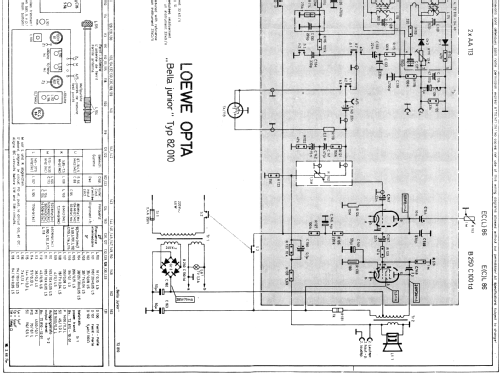

Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella junior 62 010, Loewe-(Opta); Deutschland:
Andreas Hahn

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EAF801 ECL86
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Bella junior 62 010 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 380 x 210 x 150 mm / 15 x 8.3 x 5.9 inch
Notes Dioden: 2× AA113.
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
