Clivia-Stereo 6836T/W

Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 53591) Radio
Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 278395) Radio Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 278390) Radio
Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 278392) Radio Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 278391) Radio
Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 278393) Radio Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 278394) Radio
Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 2565641) Radio Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 2565642) Radio
Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 2565643) Radio
Use red slider bar for more.
Clivia-Stereo 6836T/W; Loewe-Opta; (ID = 278395) Radio
Loewe-Opta;: Clivia-Stereo 6836T/W [Radio] ID = 278395 378x210
Select picture or schematic to display from thumbnails on the right and click for download.
For model Clivia-Stereo 6836T/W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF86 EF86 EM84 EBF89 EL84 EL84
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Clivia-Stereo 6836T/W - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1170 x 770 x 420 mm / 46.1 x 30.3 x 16.5 inch

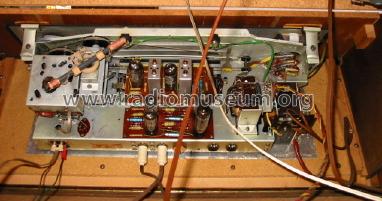

Notes Rundfunk-Chassis = 6768;
Phono-Chassis = Perpetuum-Ebner PE66.
Net weight (2.2 lb = 1 kg) 46.5 kg / 102 lb 6.8 oz (102.423 lb)
Price in first year of sale 828.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1317 with images and 1153 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
