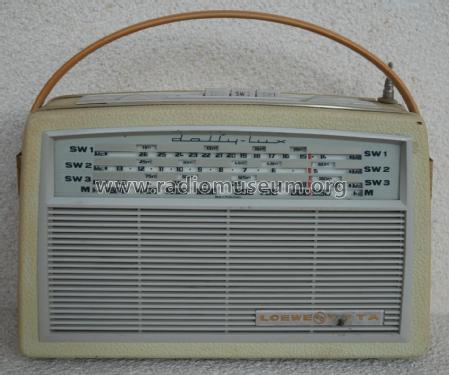

Dolly Lux
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1961 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 316428
-
- alternative name: Löwe Radio
- Number of Transistors
- 8
- Semiconductors
- AF117 AF117 AF115 AF115 TF65 TF65 unknown_tr unknown_tr
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / C: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Dolly Lux - Loewe-Opta; Deutschland
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 285 x 235 x 85 mm / 11.2 x 9.3 x 3.3 inch
- Notes
-
Loewe Opta Dolly Lux is an export model.
SW1: 13.5 to 26.5 MHz
SW2: 4.5 to 13.5 MHz
SW3: 1.6 to 4.5 MHz
- Net weight (2.2 lb = 1 kg)
- 2.150 kg / 4 lb 11.8 oz (4.736 lb)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
