F702 93042

F702 93042; Loewe-Opta; (ID = 750573) Television

F702 93042; Loewe-Opta; (ID = 750576) Television

F702 93042; Loewe-Opta; (ID = 750579) Television

F702 93042; Loewe-Opta; (ID = 750580) Television

F702 93042; Loewe-Opta; (ID = 750581) Television

F702 93042; Loewe-Opta; (ID = 750582) Television

F702 93042; Loewe-Opta; (ID = 750583) Television

F702 93042; Loewe-Opta; (ID = 750584) Television

F702 93042; Loewe-Opta; (ID = 750585) Television

F702 93042; Loewe-Opta; (ID = 750587) Television
Use red slider bar for more.
F702 93042; Loewe-Opta; (ID = 750573) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1967/1968 Category: Television Receiver (TV) or Monitor
Valves / Tubes 9: PCL86 PCL200 PCH200 PCF802 PCL85 PL504 PY88 DY802 A59-12W or A59-11W
Semiconductors (the count is only for transistors) 8: AF106 AF239 AF139 AF201 AF200 2N3703 AF201 AF202
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: F702 93042 - Loewe-Opta; Deutschland
Shape Tablemodel, with any shape - general.
Notes VHF / UHF

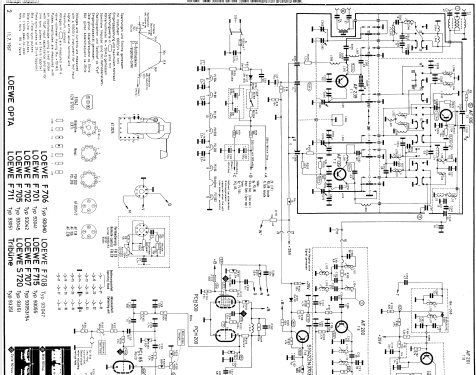

Literature/Schematics (1) -- Schematic (Loewe Opta- Fernsehgeräte- Schaltungen 1964- 68)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
