For model Kobold 5960TR, Loewe-(Opta); Deutschland:

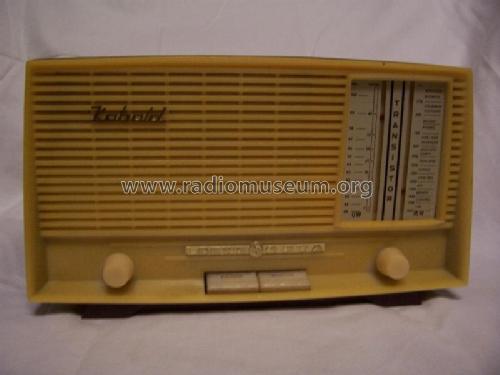

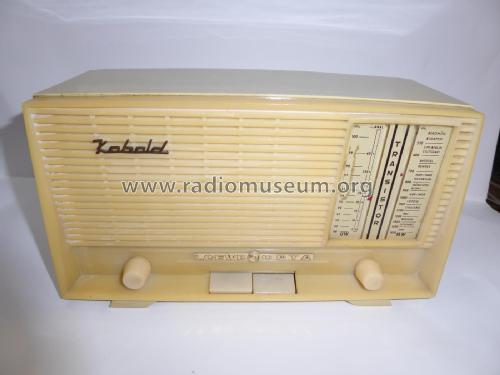

Loewe-Opta Kobold 5960TR Hauptansicht

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171 OC171 OC169 OC169 OC169 OC71 OC71 OC74 OC74 OA79 OA79 OA79 OA70
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details

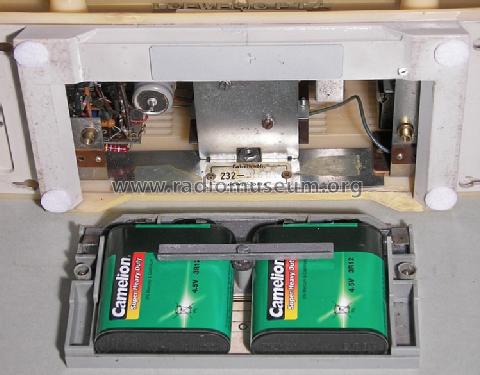

Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Kobold 5960TR - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 255 x 140 x 100 mm / 10 x 5.5 x 3.9 inch
Notes .
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Price in first year of sale 175.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
