Kosmos 2649W

Kosmos 2649W; Loewe-Opta; (ID = 400789) Radio Kosmos 2649W; Loewe-Opta; (ID = 404422) Radio
Use red slider bar for more.
Kosmos 2649W; Loewe-Opta; (ID = 400789) Radio
Loewe-Opta;: Kosmos 2649W [Radio] ID = 400789 845x700
Select picture or schematic to display from thumbnails on the right and click for download.

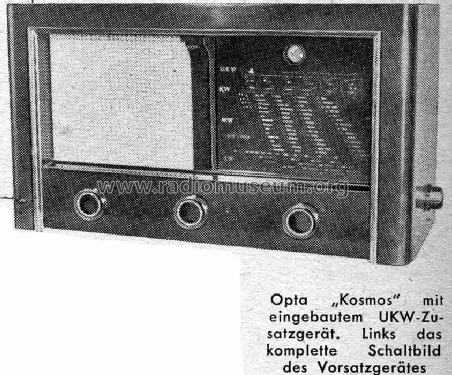

For model Kosmos 2649W, Loewe-(Opta); Deutschland:
Aus Funktechnik (FT) 1949, S.313

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EF9 EBL1 AZ1 EM4
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Kosmos 2649W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 320 x 230 mm / 21.7 x 12.6 x 9.1 inch
Notes UKW-Skala.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
External source of data Ernst Erb, HB9RXQ
Source of data Das Rundfunk-Jahr 1948/49
