Lissy 5940

Lissy 5940; Loewe-Opta; (ID = 27045) Radio

Lissy 5940; Loewe-Opta; (ID = 704140) Radio
Lissy 5940; Loewe-Opta; (ID = 1293558) Radio Lissy 5940; Loewe-Opta; (ID = 1293559) Radio
Lissy 5940; Loewe-Opta; (ID = 75048) Radio Lissy 5940; Loewe-Opta; (ID = 337773) Radio
Lissy 5940; Loewe-Opta; (ID = 149894) Radio Lissy 5940; Loewe-Opta; (ID = 27047) Radio
Lissy 5940; Loewe-Opta; (ID = 137480) Radio Lissy 5940; Loewe-Opta; (ID = 149895) Radio
Lissy 5940; Loewe-Opta; (ID = 319493) Radio Lissy 5940; Loewe-Opta; (ID = 319494) Radio
Use red slider bar for more.
Lissy 5940; Loewe-Opta; (ID = 1293558) Radio
Loewe-Opta;: Lissy 5940 [Radio] ID = 1293558 933x783
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lissy 5940, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171V OC171M OC169 OC169R OC169 OC71 OC71 OC74 OC74 OA91 OA90 OA90 OA90
Main principle Superhet with RF-stage; ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9; 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (undistorted)
from Radiomuseum.org Model: Lissy 5940 - Loewe-Opta; Deutschland
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 180 x 75 mm / 10.2 x 7.1 x 3 inch
Notes

UKW-Vorstufe (T1, OC171V) arbeitet in Reflexschaltung als erste FM-ZF-Stufe.

Speisung auch mit 9 V Kastenbatterie IEC 6 F 100, z.B. Pertrix/Varta 439

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 219.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 1, Ernst Erb

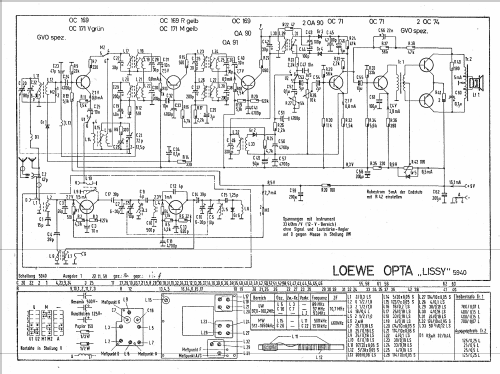

Literature/Schematics (1) Funkschau Heft 7/1960 S.153-156
