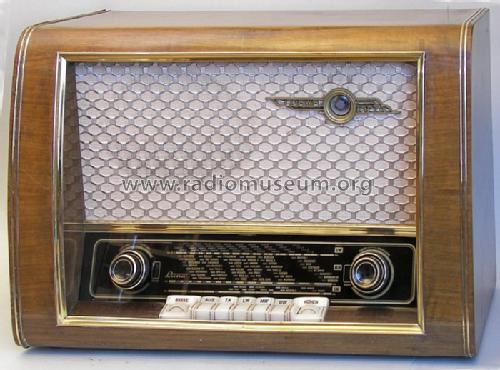

Luna 557W
Loewe-Opta;: Luna 557W [Radio] ID = 653725 700x518
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Löwe Radio | ||||
|---|---|---|---|---|---|
| Year: 1954/1955 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

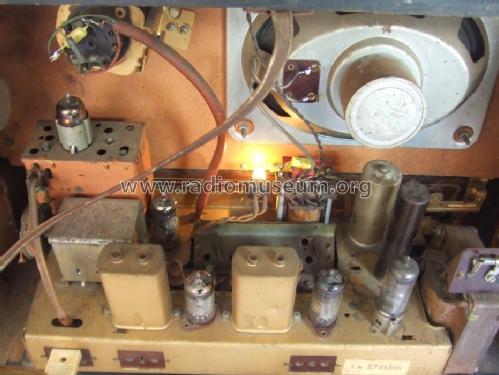

| Valves / Tubes | 6: ECC85 ECH81 EF89 EABC80 EM4 EL41 | ||||
| Semiconductors (the count is only for transistors) | B250C75 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 150; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 4 W (unknown quality) |
| from Radiomuseum.org | Model: Luna 557W - Loewe-Opta; Deutschland |
| Material | Wooden case |

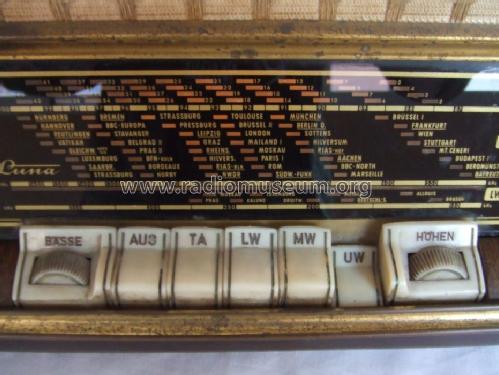

| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 520 x 350 x 240 mm / 20.5 x 13.8 x 9.4 inch |
| Notes | Siehe auch Plastik-Gerät mit drei Lautsprechern und anderem NF-Teil. |
| Net weight (2.2 lb = 1 kg) | 8 kg / 17 lb 9.9 oz (17.621 lb) |
| Price in first year of sale | 249.00 DM |
| Source of data | Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
